GDMS (Gear Dimension Measurement System Double Flank Tester)
齿轮尺寸测量仪
Double Flank Tester齿轮尺寸测量系统是测量齿轮的OBD、Ruout、Inner Dia、Gear Nick、Height等数值的系统。齿轮尺寸测量仪分为1-Station或2-Station方式，测量机构部的组装和加工状态以5±以下的水平制作。
OBD、Inner Dia、Inner Dia Upper、Height、Runout、Upper Runout、Lower Runout、Gear Nick的测量，重复性以30次为基准，满足3±以下。
Hardware Specification
| Function | Specification |
|---|---|
| Servo Motor | MITSUMISHI 40W (10.8Nm) |
| Control Mode | CCW / CW / SPEED |
| Encoder | 3200 pulse / rev |
| Clamping Unit | MANDREL(Test Gear) / Manual(Master Gear) |
| Spindle | < Runout 5 um |
| Center Distance | Auto adjust |
| Size | 2800(W) x 1700(D) x 2100(H) mm |
| Etc. | Barcode Reading, Transfer Unit, NG Port |
Software Specification

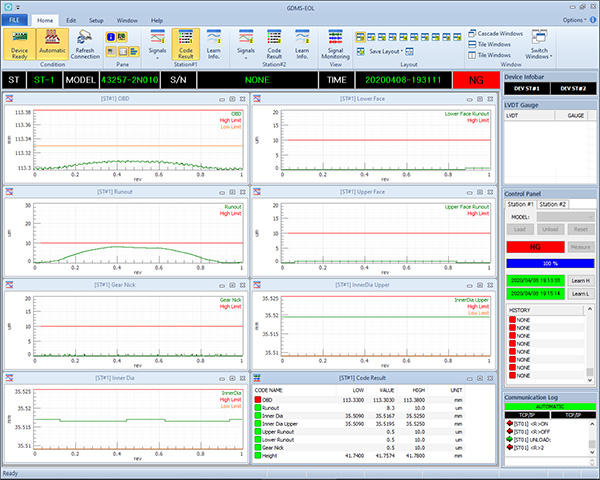

Runout Signal
Gear Nick
测量代码结果窗口
| Function | Specification (Software) |
|---|---|
| Measurement | Runout, Upper Runout, Lower Runout / Gear Nick : um / OBD, Inner Dia, Inner Dia Upper, Height : mm |
| Measurement Station | 最多支持 2 个站 |
| Calibration | 使用 Setting Master Gear 设置 LVDT |
| Display Chart | OBD, Gear Nick, Runout, Upper Face, Inner Dia, Inner Dia Upper |
| Statistics | GDMS-SQL - Search / Statistics / Trend Analysis / Production Rate Analysis |
| 等等 | Camera VIEW & SAVE / Backlash Measurement |
- 利用代码阅读器的产品Serial Number储存
- NG Buffer上的不良类型Unload功能
- 利用making机的齿轮定位显示
- DB建设，对数百万台生产履历查询及Trend View等数据统计处理功能
- NICK数据对OBD的Runout测量没有影响
Application
