PDSA (Portable Dynamic Signal Analyzer)
Portable Dynamic Signal Analyzer
PDSA is a product with noise/vibration monitoring, data recording and post-processing analysis, and frequency analysis functions based on the Dynamic Signal Analyzer function.
It has a function to monitor noise and vibration data for a long time through time domain analysis and frequency domain analysis techniques. If an abnormal situation occurs during monitoring, it notifies the person in charge by text message (SMS) or turns on the warning light and buzzer.
Feature
Monitoring System
- Optimized for vibration monitoring of facilities, roads, environments, and construction sites
- Real Time Recording
- Time Code such as Rms, Peak, etc.
- Frequency Band Code
- Buzzer and SMS notification available

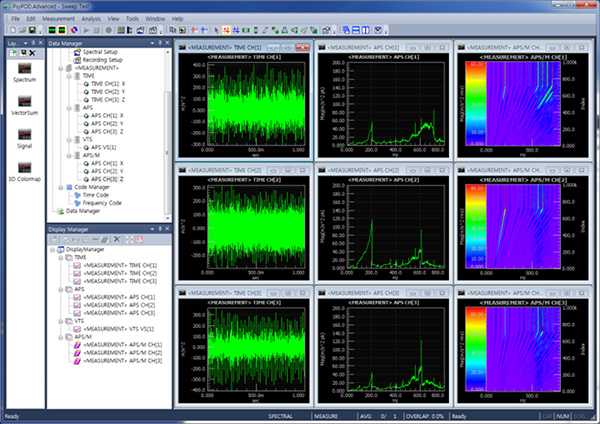

Diagnostics & Analysis
- Optimized for equipment diagnosis, product vibration measurement and abnormal diagnosis
- Time Domain Analysis
- Frequency Domain Analysis
- Overlap/Average Setup
- Vector Sum Spectrum
FRF or SIMO Test
- Optimized to check the resonant frequency of equipment and products => Used for design and modal analysis
- APS/FRF/COH View
- Cross Spectrum
- Trigger Level Setup
- UFF58 Export
Octave Analysis
- Optimized for general octave analysis (living noise) or diagnosis of semiconductor equipment
- 1/3~1/24 Octave Band
- Octave Range Setup
- Custom Time Setup
- Vibration Monograph (BBN-Criterion)
Application
▲ Engine durability evaluation
▲ Semiconductor installation vibration monitoring
▲ Vibration measurement of automobile parts
▲ Equipment vibration measurement
▲ Structural test (FRF TEST)
▲ UFF58 Export → Modal analysis available
